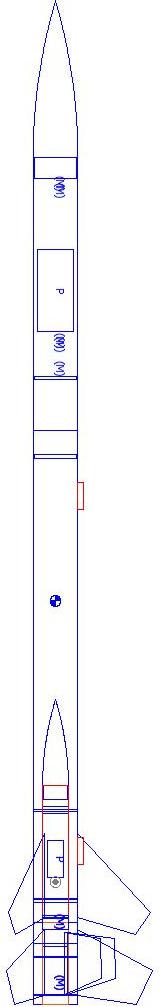

Renegade XL Rocksim Design File

Contributed by Ashley Lightfoot

Comments: Estes Renegade lengthened with side pods chutes and cluster on booster. Cd's were verified through flight testing.

Designer: A. E. Lightfoot

Download mods_estes_renegade_xl.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

CG: 21.9762 inches from front
CP: 32.2661 inches from front
Margin: 6.27 Overstable

Parts Breakdown

• Estes Renegade Ogive Nose Cone
• General small screw eye small screw eye Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 10.00 in]
• Estes Rip stop nylon Parachute (18.00 in)
• Semroc Mass Object
• General Connector Ring 1" 1 inch Mass Object
• General Snap swivel medium swivel clip Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 18.00 in]
• Estes Engine hook Standard size Mass Object
• Semroc SE-10 Screw Eye Mass Object
• LOC Precision LOC BP-1.52 Ring
• LOC Precision LOC BP-1.52 Ring
• Estes Estes Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 5.00 in]
• Apogee Components Ogive Transition
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 5.00 in]
• Apogee Components Ogive Transition
• Estes ESTES 2328 Launch Lug
• Estes ESTES 2328 Launch Lug
• Estes Renegade Freeform Fin Set Freeform Fin Set
• Estes - Ring
• Estes - Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 4.25 in]
• Apogee 13031 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.00 in]
• Estes Estes Ring
• LOC Precision Ring
• General mini screw eye mini screw eye Mass Object
• Top Flite Rip stop nylon Parachute (8.00 in)
• Estes Engine hook Standard size Mass Object
• Estes - Ring
• Estes - Ring
• Estes Estes Ring
• Estes Renegade Freeform Fin Set Freeform Fin Set
• Estes Renegade Freeform Fin Set Freeform Fin Set
• Estes Renegade Freeform Fin Set Freeform Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.00 in]
• Estes Estes Ring
• LOC Precision Ring
• General mini screw eye mini screw eye Mass Object
• Top Flite Rip stop nylon Parachute (8.00 in)
• Estes Engine hook Standard size Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.12 in]
• Estes Engine hook Standard size Mass Object
• Estes Mass Object
