All Rocksim Designs (2065 of 3219)

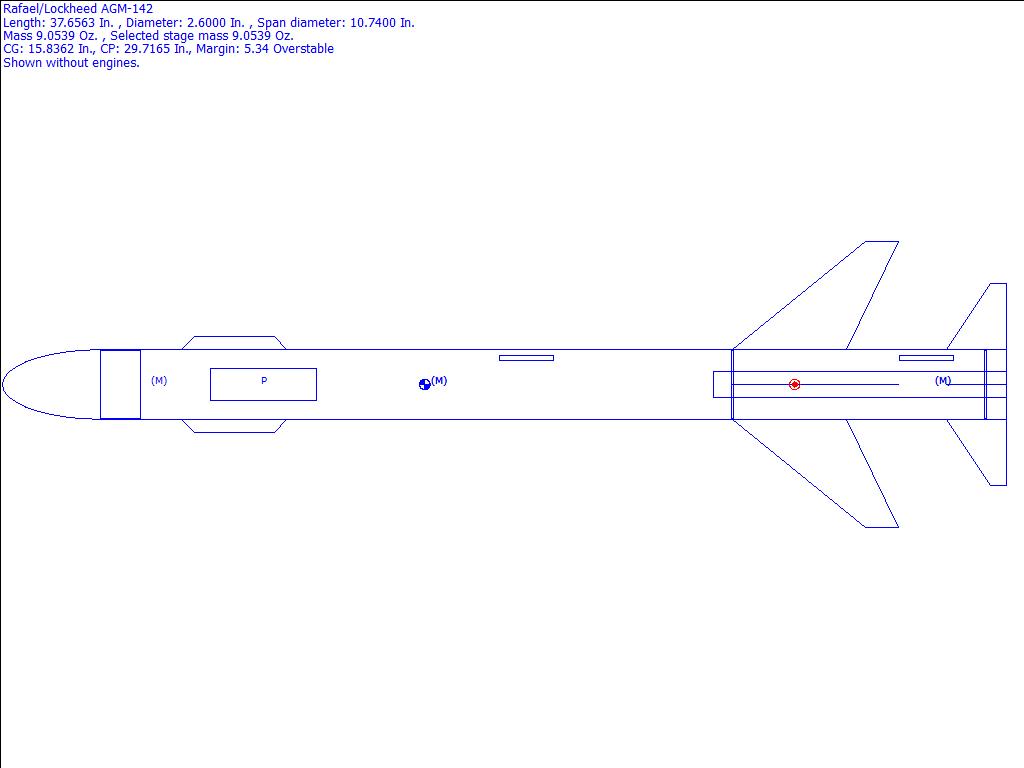

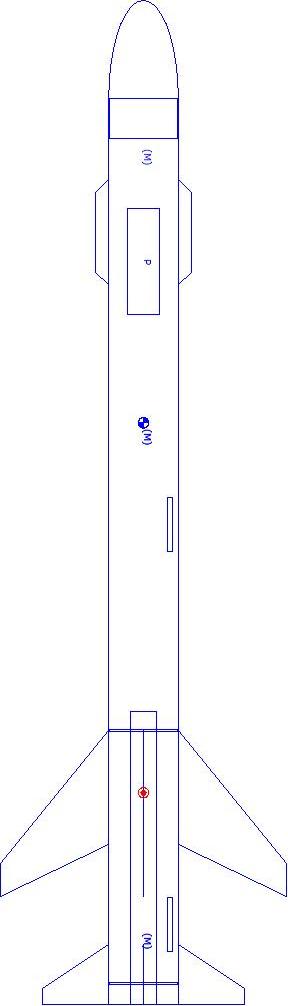

Rocket Pad Rafael/Lockheed AGM-142 Rocksim Design File

Comments: Kit #1004

Designer: Rocketpad Kits

Download rocketpad_agm142.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

CG: 15.8362 inches from front
CP: 29.7165 inches from front
Margin: 5.34 Overstable

Parts Breakdown

• Rocket Pad Asroc Elliptical Nose Cone
• Custom Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 34.00 in]
• Custom Mylar Parachute (24.00 in)
• Estes ESTES 2328 Launch Lug
• Rocket Pad Rafael/Lockheed AGM-1 Freeform Fin Set
• Rocket Pad Rafael/Lockheed AGM-1 Freeform Fin Set
• Rocket Pad Rafael/Lockheed AGM-1 Freeform Fin Set
• Custom Ring
• Custom Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 11.00 in]
• Estes Engine hook Standard size Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 11.00 in]
• Estes Engine hook Standard size Mass Object
• Custom Mass Object
• Custom Mass Object
• Estes ESTES 2328 Launch Lug
