Estes - Ventris Rocksim Design File

• Family: Estes : Pro Series II
• Manufacturer: Estes
• Power: Mid-Power
• Recovery: Parachute
• Skill Level: 5
• Style: Sport

Download Estes Ventris.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

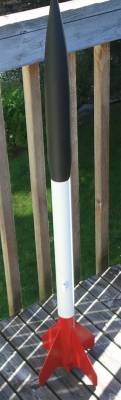

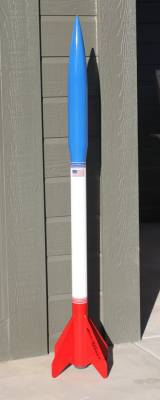

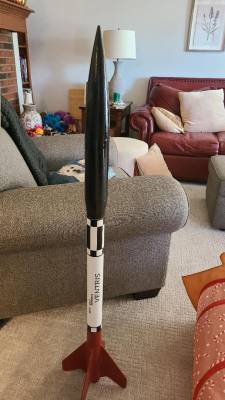

Kit Name: Estes - Ventris {Kit} (009701) [2012-2018]
Diameter: 2.5000 inches
Length: 46.2500 inches
Style: Sport

CG: 23.1668 inches from front
CP: 38.7111 inches from front
Margin: 6.22 Overstable

Parts Breakdown

• Estes - Ventris Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 6.50 in]
• Estes Conical Transition
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 27.00 in]
• Estes Polyethylene LDPE Parachute (25.00 in)
• Estes 038378 Shock Cord Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 8.00 in]
• Estes 072412 Motor Retainer Mass Object
• Estes 066475 Ring
• Estes Ring
• Estes Ring
• Estes Ring
• Estes - Ventris Freeform Fin Set Freeform Fin Set
• Estes ESTES Launch Lug
• Estes ESTES Launch Lug
