Designs >> Rocksim Library >>	All Rocksim Designs (297 of 3219)

For Rocksim Design File

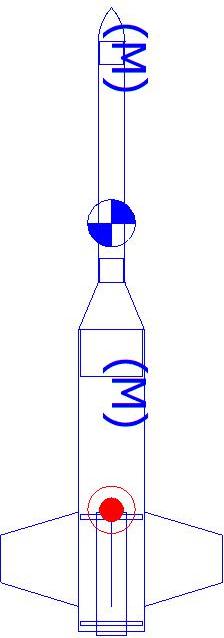

Comments: Downscale of Ajax Sounding Rocket. For Quest micro maxx rocket motors

Designer: Francesco Banelli Prato - Italy

Download scratch_micro_ajax.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

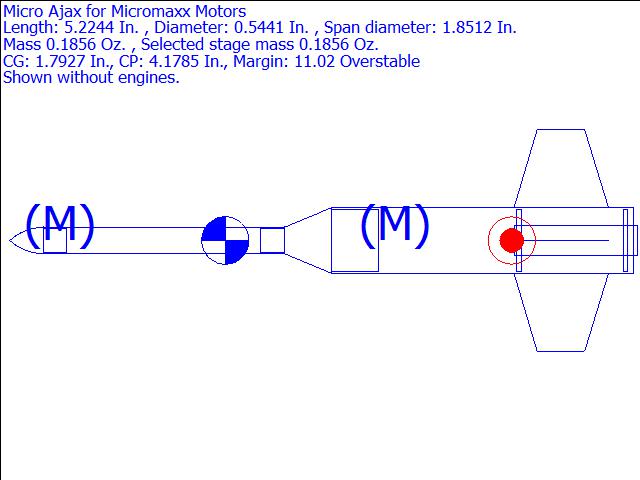

CG: 1.7927 inches from front
CP: 4.1785 inches from front
Margin: 11.02 Overstable

Parts Breakdown

• For Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.01 in]
• Custom Mass Object
• Custom Conical Transition
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.52 in]
• For Trapezoid Fin Set Trapezoid Fin Set
• Custom Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 1.02 in]
• Custom Ring
• Custom Ring
