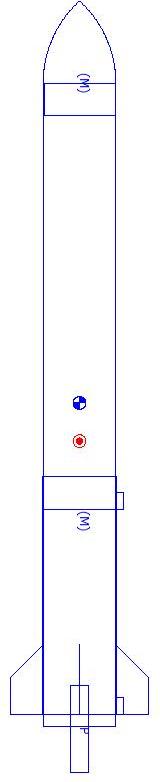

Asroc 1/6 sport scale Rocksim Design File

• Manufacturer: Scratch

Comments: 1/6 scale rocket-launched torpedo

Download scratch_asroc.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: Scratch - Asroc 1/6 sport scale {Scratch}

CG: 12.2603 inches from front
CP: 13.4243 inches from front
Margin: 0.53 Marginal

Parts Breakdown

• Asroc 1/6 sport scale Ogive Nose Cone
• DIY .25 oz. Nose Weight Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 19.62 in]
• Asroc 1/6 sport scale Trapezoid Trapezoid Fin Set
• Custom Ring
• DIY Rip stop nylon Parachute (16.00 in)
• DIY Launch Lug
• DIY Launch Lug
• DIY Screw Eye #212 Mass Object
• DIY ASROC Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 8.50 in]
• Asroc 1/6 sport scale Freeform F Freeform Fin Set
• BMS Balsa Ply Ring
• BMS Balsa Ply Ring
• BMS Balsa Ply Ring
• Estes Estes Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 9.00 in]
• Apogee EB-50 Ring
• Estes Engine hook Standard size Mass Object
• Custom Ring
