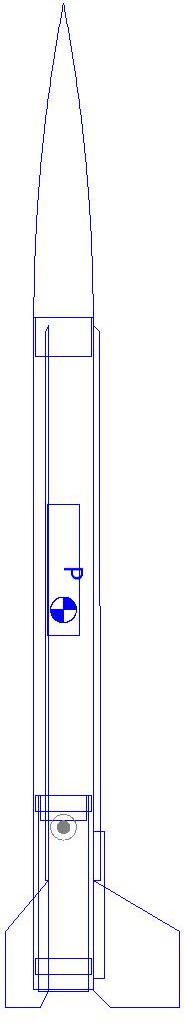

Semroc - Aerobee-Hi Rocksim Design File

Contributed by Semroc

• Manufacturer: Semroc
• Power: Low-Power
• Recovery: Parachute
• Scale: Aerobee : Aerobee-Hi
• Skill Level: 1
• Style: Scale
• Style: Sport

Comments: KV-2

Designer: Semroc Astronautics Corp

Download semroc_aerobee_hi.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: Semroc - Aerobee-Hi {Kit} (KV-2) [2006-]
Diameter: 0.8250 inches
Length: 14.0000 inches
Style: Scale

CG: 9.2845 inches from front
CP: 12.6138 inches from front
Margin: 3.67 Overstable

Parts Breakdown

• Alan's Semroc Marauder Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 10.30 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 0.25 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 0.25 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 0.39 in]
• Semroc - Aerobee-Hi Freeform Fin Freeform Fin Set
• Semroc Polyethylene LDPE Parachute (12.00 in)
• Semroc - Aerobee-Hi Freeform Fin Freeform Fin Set
• Semroc LL-122 Launch Lug
