Super Yellow Jacket Rocksim Design File

• Family: Estes : Yellow Jacket
• Manufacturer: Estes
• Manufacturer: Scratch
• Motor Size: 18 mm
• Power: Low-Power
• Recovery: Parachute
• Style: Sport

Comments: Upscale Estes original Yellow Jacket (streched) 54mm

Designer: Mike Smeltzer (estes original)

Download scratch_superyellowjacket_1.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

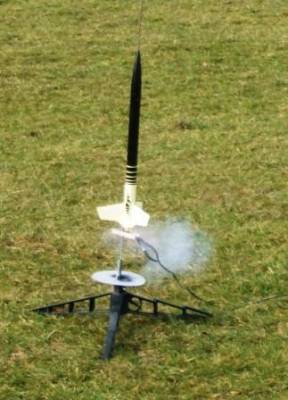

Kit Name: Estes - Yellow Jacket {Kit} (2008) [1989-1998]
Diameter: 0.9760 inches
Length: 16.8000 inches
Style: Sport

CG: 64.4493 inches from front
CP: 105.3384 inches from front
Margin: 6.70 Overstable

•

Parts Breakdown

• Aramis II Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 18.00 in]
• Public Missiles Ltd. PML CT-6.00 Ring
• Public Missiles PML CBP-15 Ring
• Custom Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 30.12 in]
• Public Missiles Ltd. PML CT-6.00 Ring
• Public Missiles PML BP-15 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 48.00 in]
• Public Missiles PML LL-50 Launch Lug
• Public Missiles PML LL-50 Launch Lug
• Custom Rip stop nylon Parachute (66.00 in)
• Custom Mass Object
• Public Missiles PML CR-17 Ring
• Public Missiles PML CR-17 Ring
• Public Missiles PML CR-17 Ring
• Super Yellow Jacket Freeform Fin Freeform Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 25.00 in]
