Estes - Dragonite Rocksim Design File

• Manufacturer: Estes
• Motor Size: 18 mm
• Power: Low-Power
• Recovery: Parachute
• Skill Level: 1
• Style: Sport

Comments: Simulation based upon an actual kit build.

Designer: Estes Industries; Rocksim file by David J. Thomas.

Download Dragonite.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

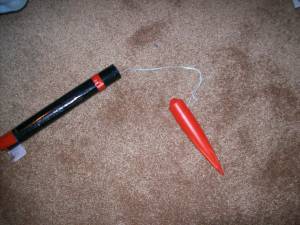

Kit Name: Estes - Dragonite {Kit} (2169) [2006-]
Diameter: 1.0900 inches
Style: Sport

Parts Breakdown

• Estes Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 8.27 in]
• Custom Polystyrene PS Ring (0.9606 - 1.0433 in)
• Custom Polystyrene PS Ring (1.1024 - 1.1535 in)
• Estes Polystyrene PS Launch Lug (0.2520 in)
• Estes Mass Object
• Estes Polyethylene LDPE Parachute (12.00 in)
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.89 in]
• Estes Polystyrene PS Launch Lug (0.2520 in)
• Estes Mass Object
• Custom Polystyrene PS Trapezoid Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.50 in]
• Apogee Components Polystyrene PS Ring (0.7165 - 1.0039 in)
• Apogee Components Polystyrene PS Ring (0.7283 - 0.8976 in)
• Apogee Components Polystyrene PS Ring (1.0472 - 1.0945 in)
• Apogee Components Polystyrene PS Ring (1.0000 - 1.0630 in)
• Custom Conical Transition
