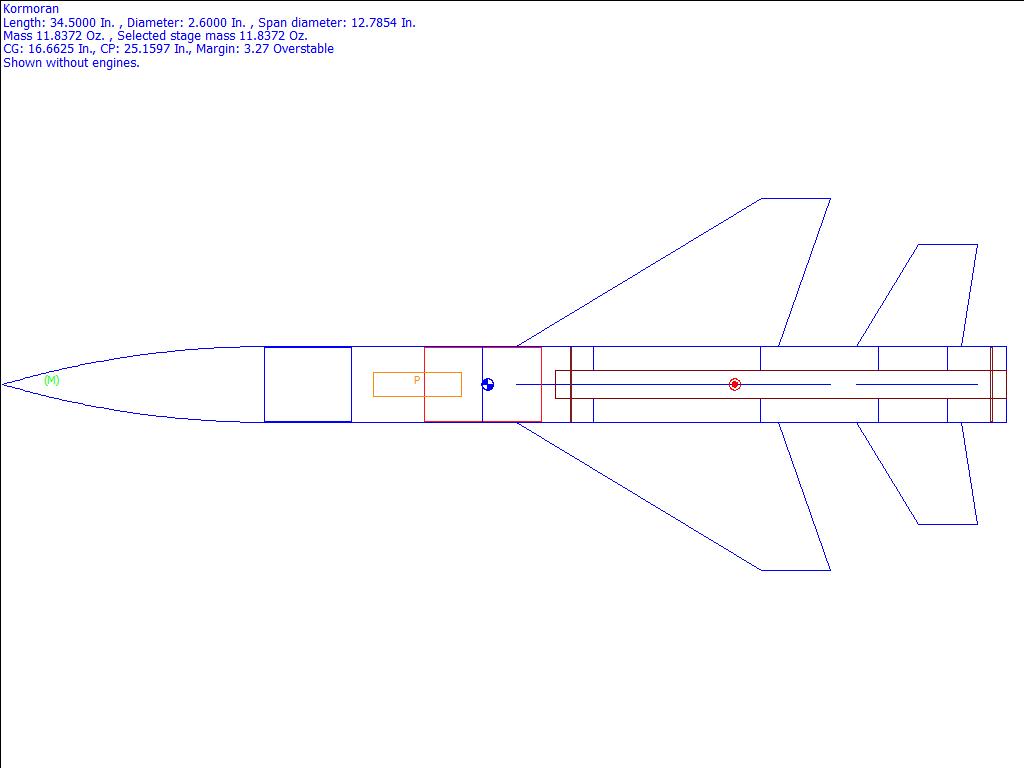

Komoran BT-80 Rocksim Design File

Designer: Marlin Meyer January, 2011

Download marlin_Komoran BT-80.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

CG: 16.6625 inches from front
CP: 25.1597 inches from front
Margin: 3.27 Overstable

Parts Breakdown

• Komoran BT-80 Ogive Nose Cone
• Semroc Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 7.50 in]
• Komoran BT-80 Freeform Fin Set Freeform Fin Set
• Semroc JT-80E Ring
• Topflight Recovery 1.7 oz. Ripstop Nylon Parachute (18.00 in)
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 18.00 in]
• Komoran BT-80 Freeform Fin Set Freeform Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 15.50 in]
• Semroc RA-5080 Ring
• Semroc RA-5080 Ring
