Quest - Future Launch Vehicle Rocksim Design File

• Manufacturer: Quest
• Recovery: Parachute
• Skill Level: 3
• Style: Scale-Like

Download future_launch_vehicle.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

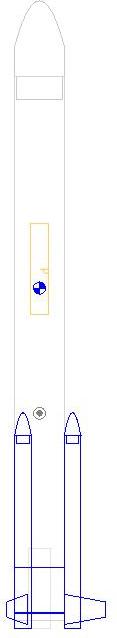

Kit Name: Quest - Future Launch Vehicle {Kit} (3013)
Diameter: 1.5740 inches
Length: 21.6000 inches
Style: Scale-Like

CG: 9.5000 inches from front
CP: 13.6390 inches from front
Margin: 2.52 Overstable

Parts Breakdown

• Quest - Future Launch Vehicle Pa Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 18.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.62 in]
• Quest - Future Launch Vehicle Tr Trapezoid Fin Set
• Quest - Future Launch Vehicle Tr Trapezoid Fin Set
• External Pod
• 3X Hawkeye.rkt Parabolic Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 6.37 in]
• External Pod
• 3X Hawkeye.rkt Parabolic Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 6.37 in]
• External Pod
• 3X Hawkeye.rkt Parabolic Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 6.37 in]
• Apogee Components Polyethylene LDPE Parachute (17.99 in)
• LOC Precision Ring
• LOC Precision Ring
• Quest - Future Launch Vehicle Tr Trapezoid Fin Set
