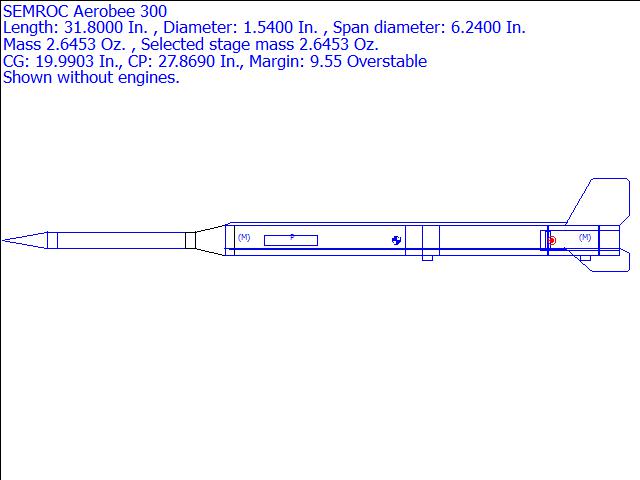

SEMROC Aerobee 300 Rocksim Design File

Comments: KD-5 Deci-Scale

Designer: SEMROC Astronautics

Visit www.semroc.com to download Semroc-Aerobee%20300.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

CG: 19.9903 inches from front
CP: 27.8690 inches from front
Margin: 9.55 Overstable

Parts Breakdown

• Semroc-Aerobee 300.rkt Conical Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 7.50 in]
• Semroc Conical Transition
• Semroc SE-12 Screw Eye-Large Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 10.00 in]
• Freeform Fin Set
• Semroc Polyethylene LDPE Parachute (16.00 in)
• Semroc LL-305 Launch Lug
• Semroc LL-305 Launch Lug
• Semroc HTC-16 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 10.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 4.00 in]
• Semroc EH-38 Engine Hook E Mass Object
• SEMROC Astronautics TR-9 Ring
• Semroc-Aerobee 300.rkt Freeform Freeform Fin Set
• SEMROC CR-9-150 Ring
• SEMROC CR-9-150 Ring
