Semroc - Javelin Rocksim Design File

Comments: KV-16

Designer: Semroc Astronautics Corp

Visit www.semroc.com to download Semroc-SLS%20Javelin.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

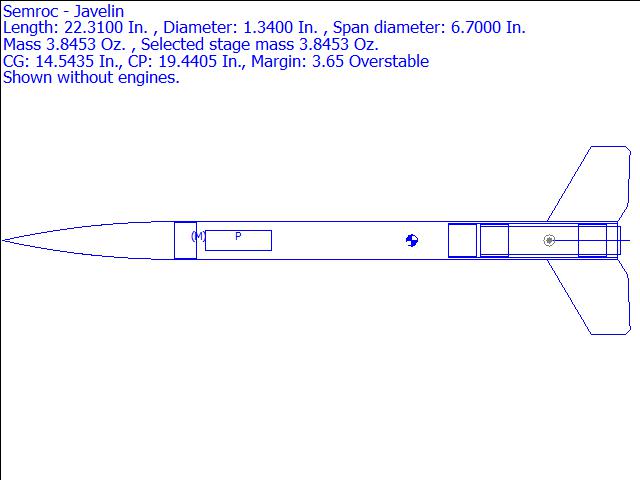

CG: 14.5435 inches from front
CP: 19.4405 inches from front
Margin: 3.65 Overstable

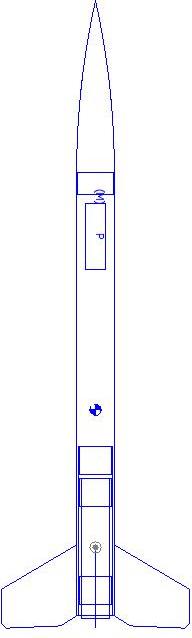

Parts Breakdown

• Semroc-SLS Javelin-29.rkt Ogive Nose Cone
• Semroc SE-10 Screw Eye Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 15.75 in]
• Semroc-SLS Javelin-29.rkt Freefo Freeform Fin Set
• Semroc 1.9 oz. Ripstop Nylon (SkyAngle) Parachute (14.00 in)
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 6.00 in]
• Semroc CR-9115 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 5.00 in]
• Semroc CR-9115 Ring
• Semroc CR-9115 Ring
