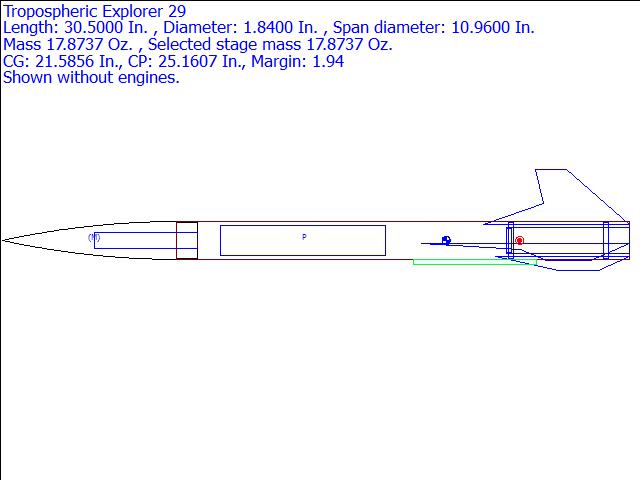

Tropospheric Explorer 29 Rocksim Design File

Comments: Fin tip probes not shown. Use 0.25" diameter dowel stock.

Designer: C. P. McGraw

Visit Ye Olde Rocket Forum to download Tropospheric_Explorer_29.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

CG: 21.5856 inches from front
CP: 25.1607 inches from front
Margin: 1.94

Parts Breakdown

• Ascender_18.rkt Ogive Nose Cone
• Public Missiles Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 22.00 in]
• Tropospheric_Explorer_29.rkt Fre Freeform Fin Set
• Custom 1.3 oz. Ripstop Nylon (SkyAngle) Parachute (48.00 in)
• Custom Ring
• Custom Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 6.00 in]
• Apogee 13035 Ring
• Public Missiles LL-0.25 Launch Lug
• Tropospheric_Explorer_29.rkt Fre Freeform Fin Set
• Freeform Fin Set
• Tropospheric_Explorer_29.rkt Fre Freeform Fin Set
• Tropospheric_Explorer_29.rkt Fre Freeform Fin Set
• Freeform Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 5.00 in]
