Big Dawg Rocksim Design File

Contributed by Roger Banks

• Designer: Matt Steele
• Manufacturer: Estes
• Motor Size: 18 mm
• Power: Low-Power
• Recovery: Parachute
• Skill Level: 1
• Style: Sport

Comments: Stock Estes Big Dawg

Designer: Estes

Download oop_estes_bigdawg.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

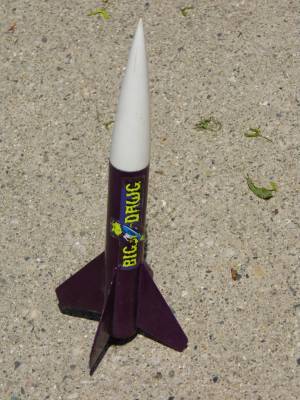

Kit Name: Estes - Big Dawg {Kit} (2151) [1998-2000]
Diameter: 1.3300 inches
Length: 12.8000 inches
Style: Sport

CG: 7.6349 inches from front
CP: 10.6812 inches from front
Margin: 2.30

Parts Breakdown

• 2-cluster 4-fin Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 7.50 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.00 in]
• Estes 30162-2 Ring
• Estes 30125 Ring
• Estes 30125 Ring
• Estes Polyethylene LDPE Parachute (12.00 in)
• Big Dawg Freeform Fin Set Freeform Fin Set

What You Can Do

• Submit a File Related to this Rocksim Design File
• Submit a Rocksim Design File to RocketReviews.com
