binder_design_jaguar_38mm.rkt Rocksim Design File

Contributed by Binder_Design

• Manufacturer: Binder Design

Download binder_design_jaguar_38mm.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

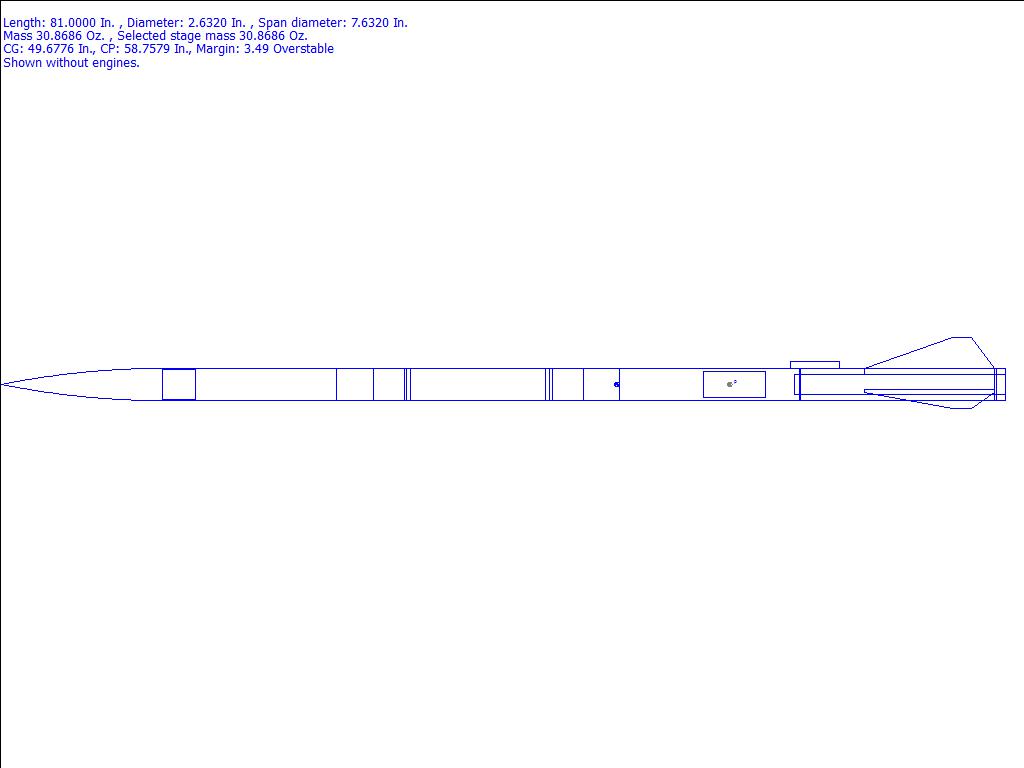

Kit Name: Binder Design - Jaguar {Kit}

CG: 49.6776 inches from front
CP: 58.7579 inches from front
Margin: 3.49 Overstable

Parts Breakdown

• Binder Design Stealth Jr. Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 17.00 in]
• Binder Design CP-2.6 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 17.00 in]
• Binder Design CP-2.6 Ring
• Binder Design BH-2.6 Ring
• Binder Design BH-2.6 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 34.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 17.00 in]
• Binder Design CR-2.6-38mm Ring
• Binder Design CR-2.6-38mm Ring
• binder_design_jaguar_38mm.rkt Tr Trapezoid Fin Set
• Binder Design LL-50 Launch Lug
• Binder Design 1.9 oz. Ripstop Nylon (SkyAngle) Parachute (30.00 in)
