BSD Canadian Sprint 38mm Rocksim Design File

Contributed by Kathy Miller

• Manufacturer: BSD High Power Rocketry

Designer: Scott Binder

Download bsd_canadian_sprint.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: BSD High Power Rocketry - Canadian Sprint {Kit}

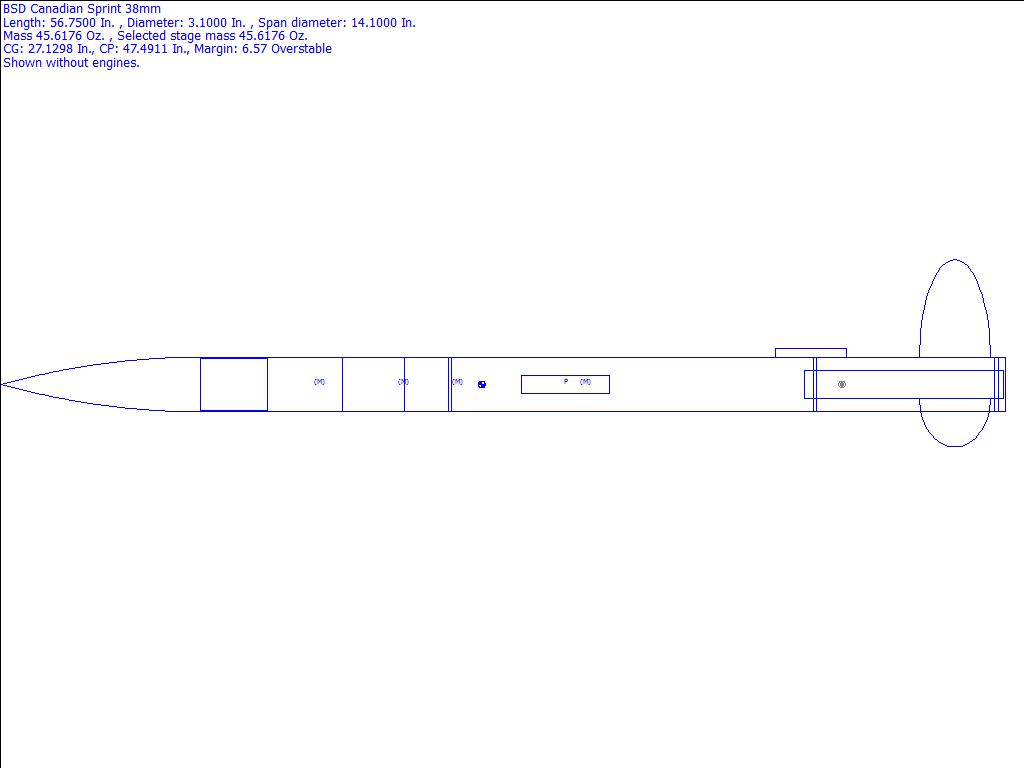

CG: 27.1298 inches from front
CP: 47.4911 inches from front
Margin: 6.57 Overstable

Parts Breakdown

• BSD Canadian Sprint 38mm Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 11.50 in]
• Custom Ring
• Custom Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 34.00 in]
• Custom Mass Object
• Custom Ring
• Custom Ring
• LOC LOC LL50 Launch Lug
• DIY Eye Hook #4 Mass Object
• Custom Ring
• Retro Rocket Works Rip stop nylon Parachute (30.00 in)
• Public Missiles PML SC-1.0 "1"" shock cord" Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 11.25 in]
• BSD Canadian Sprint 38mm Ellipti Elliptical Fin Set
