Patriot RTF Rocksim Design File

Contributed by Andy Wong

• Manufacturer: Estes

Comments: Data input by Andy W.

Designer: Estes

Download estes_patriot_rtf.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

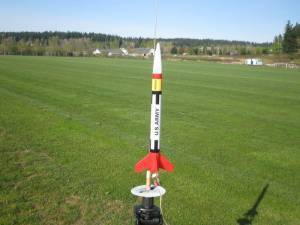

Kit Name: Estes - US Army Patriot Starter Set {Launch/Starter Set} [?-?]

CG: 11.8355 inches from front
CP: 14.9929 inches from front
Margin: 2.38

Parts Breakdown

• Estes Patriot RTF Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 10.81 in]
• Estes Patriot RTF Trapezoid Fin Trapezoid Fin Set
• SEMROC Astronautics LL-2B Launch Lug
• Custom Polyethylene LDPE Parachute (12.00 in)
• Custom Mass Object
• Custom Conical Transition
