HI TECH H45 Rocksim Design File

Contributed by Giacomo Bosso

• Manufacturer: LOC/Precision
• Motor Size: 38 mm
• Power: High-Power
• Power: Mid-Power
• Recovery: Parachute
• Style: Sport

Designer: LOC/Pecision

Download loc_hitechh45_38mm.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

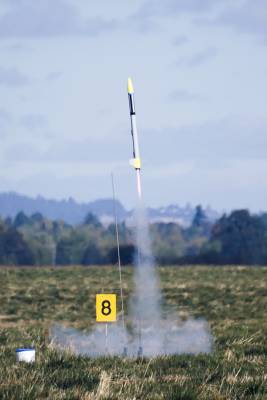

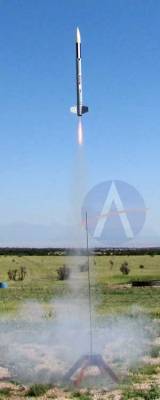

Kit Name: LOC/Precision - Hi-Tech H45 {Kit} (PK-17) [1988-]
Diameter: 2.6300 inches
Length: 49.7500 inches
Style: Sport

CG: 28.8691 inches from front
CP: 41.7843 inches from front
Margin: 4.97 Overstable

Parts Breakdown

• 29mm Estes 2.6 V2 Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 10.00 in]
• Custom Ring
• Custom Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 30.08 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 10.00 in]
• Custom Ring
• Custom Ring
• HI TECH H45 Freeform Fin Set Freeform Fin Set
• LOC LOC LL25 Launch Lug
• LOC LOC LL25 Launch Lug
• Custom Rip stop nylon Parachute (28.00 in)
