Public Missiles Ariel Rocksim Design File

• Manufacturer: Public Missiles

Comments: KS2k 54mm MMT Configured as 38mm

Designer: Design entered by Michael J. Mangieri

Download pml_ariel_38mm.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: Public Missiles - Ariel

CG: 36.1219 inches from front
CP: 50.3749 inches from front
Margin: 4.60 Overstable

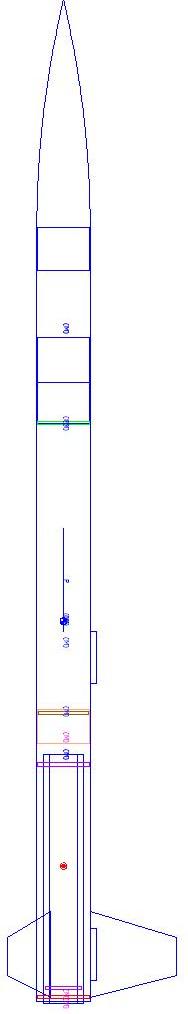

Parts Breakdown

• alpha1.rkt Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 9.00 in]
• Public Missiles Ltd. PML CT-3.00 Ring
• Public Missiles Mass Object
• Public Missiles Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 36.00 in]
• Public Missiles Mass Object
• Public Missiles PML CR-11 Ring
• Public Missiles PML CR-11 Ring
• Public Missiles PML LL-38 Launch Lug
• Public Missiles PML LL-38 Launch Lug
• Public Missiles PML CBP-05 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 14.50 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 14.50 in]
• Public Missiles Ring
• Public Missiles Mass Object
• Public Missiles Mass Object
• Public Missiles Mass Object
• Public Missiles Mass Object
• alpha1.rkt Trapezoid Fin Set Trapezoid Fin Set
• Public Missiles PML NT-01 1/8x24 nut Mass Object
• Public Missiles PML EB-01 1/8x24 eyebolt Mass Object
• Custom Mass Object
• Public Missiles Rip stop nylon Parachute (36.00 in)
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.00 in]
• Public Missiles PML CBP-05 Ring
• Public Missiles PML DR-10 D ring Mass Object
• Public Missiles Mass Object
• Custom Mass Object
