Ring Thing Rocksim Design File

• Manufacturer: Scratch

Comments: Buillt for EMRR 2009 Challenge

Designer: Hans "Chris" Michielssen

Download scratch_ring_thing_2-stage.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

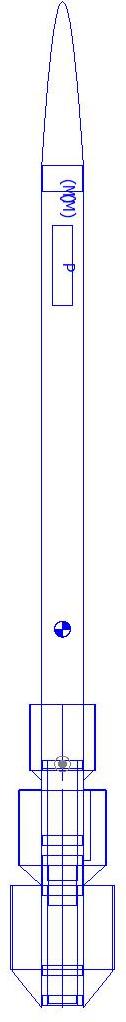

Kit Name: Scratch - Ring Thing {Scratch}

CG: 15.6894 inches from front
CP: 19.0635 inches from front
Margin: 3.24 Overstable

Parts Breakdown

• Ring Thing Parabolic Nose Cone
• Semroc Mass Object
• Semroc SE-12 Screw Eye-Large Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 18.00 in]
• Semroc CR-710 Ring
• Semroc TB-7 Ring
• Ring Thing Freeform Fin Set Freeform Fin Set
• Ring Thing Freeform Fin Set Freeform Fin Set
• RingTail
• RingTail
• Semroc LL-117 Launch Lug
• Semroc Polyethylene LDPE Parachute (12.00 in)
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.00 in]
• Semroc CR-710 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.00 in]
• RingTail
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.00 in]
• Semroc CR-710 Ring
• Semroc CR-710 Ring
• Semroc HTC-7 Ring
• Semroc TB-7 Ring
• Semroc HTC-10 Ring
• Ring Thing Freeform Fin Set Freeform Fin Set
