Strong Arm -29mm Rocksim Design File

Contributed by Larry Zeilmann

• Designer: Bob Sanford
• Manufacturer: Aerotech
• Power: Mid-Power
• Recovery: Parachute
• Style: Sport

Comments: Larry S. Zeilmann

Designer: Aerotech

Download aerotech_strongarm_29mm.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

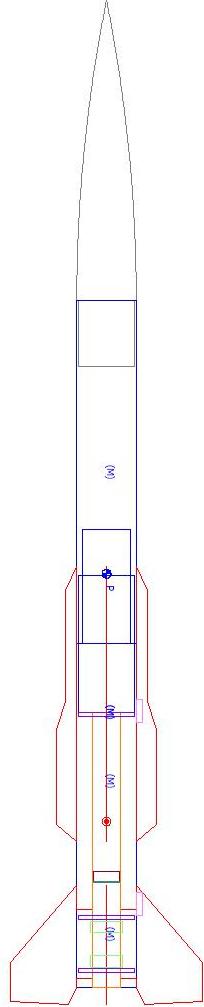

Kit Name: Aerotech - Strong Arm {Kit} (89017) [1992-]
Style: Sport

CG: 25.0630 inches from front
CP: 35.8966 inches from front
Margin: 4.17 Overstable

Parts Breakdown

• Aerotech Strong ARM Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 15.00 in]
• Aerotech AT17388 Shock Cord Mass Object
• Aerotech Rip stop nylon Parachute (30.00 in)
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 15.00 in]
• Aerotech AT12606 Ring
• Strong Arm -29mm Freeform Fin Se Freeform Fin Set
• Strong Arm -29mm Freeform Fin Se Freeform Fin Set
• Aerotech AT19035 Launch Lug
• Aerotech AT19035 Launch Lug
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 12.00 in]
• Aerotech AT19015 Screw Eye Mass Object
• Aerotech AT16629 Ring
• Aerotech AT19344 Ring
• Aerotech AT14011 Ring
• Aerotech AT14010 Ring
• Aerotech AT19001 Motor Hook Mass Object
• Aerotech AT19344 Ring
• Aerotech AT19011 Cooling Mesh Mass Object
• Aerotech AT19030 Ejection Gas Baffle Mass Object
• Aerotech AT16629 Ring
• Aerotech AT16629 Ring
