Arreaux Rocksim Design File

• Designer: Gary Rosenfield
• Manufacturer: Aerotech
• Motor Size: 29 mm
• Power: Mid-Power
• Recovery: Parachute
• Style: Sport

Comments: RockSim data by Mark Saunder

Designer: Original RockSim file from www.RocketReviews.com

Download aerotech_arreaux.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

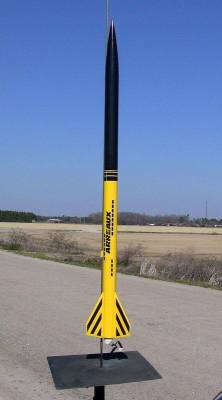

Kit Name: Aerotech - Arreaux {Kit} (89013) [1989-]
Diameter: 1.9000 inches
Length: 43.0000 inches
Style: Sport

CG: 27.5000 inches from front
CP: 38.7418 inches from front
Margin: 5.92 Overstable

Parts Breakdown

• Aerotech Arreaux Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 14.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 4.00 in]
• Custom Ring
• DIY Eye Hook #4 Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 22.80 in]
• Custom Launch Lug
• Custom Launch Lug
• Custom Mass Object
• Custom 1.9 oz. Ripstop Nylon (SkyAngle) Parachute (22.00 in)
• DIY Eye Hook #4 Mass Object
• Custom Ring
• Custom Ring
• Custom Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 12.00 in]
• Custom Mass Object
• Custom Ring
• Custom Ring
• Aerotech Arreaux Trapezoid Fin S Trapezoid Fin Set
