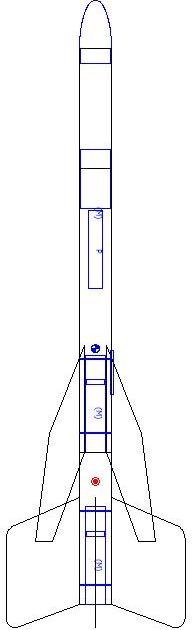

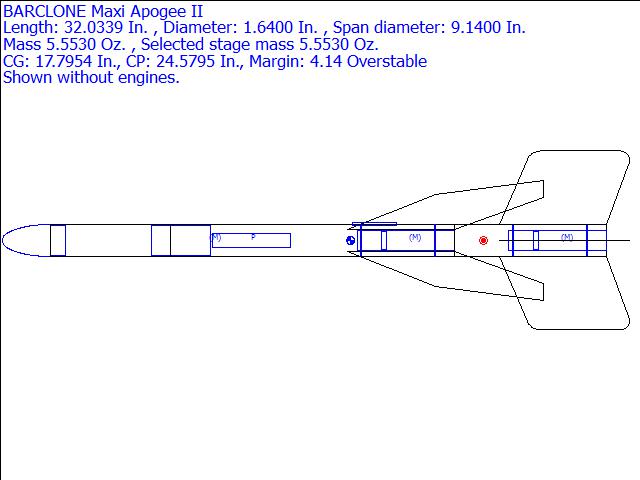

BARCLONE Maxi Apogee II Rocksim Design File

Comments: Series-60 upscale of the longer-body Estes K-Series Apogee II

Designer: C. P. McGraw -- BARCLONE Rocketry

Visit Ye Olde Rocket Forum to download Maxi_Apogee_II.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

CG: 17.7954 inches from front
CP: 24.5795 inches from front
Margin: 4.14 Overstable

Parts Breakdown

• Maxi_Apogee_I.rkt Elliptical Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 6.12 in]
• Aerospace Speciality Products BH Ring
• Semroc SE-12 Screw Eye-Large Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 14.50 in]
• SubAssembly
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 5.00 in]
• BalsaMachining.com EB24-P Ring
• Semroc EH-38 Engine Hook E Mass Object
• Semroc Ring
• Semroc Ring
• Maxi_Apogee_II.rkt Freeform Fin Set Freeform Fin Set
• Semroc LL-122 Launch Lug
• Apogee Components Polyethylene LDPE Parachute (24.00 in)
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 7.75 in]
• SubAssembly
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 5.00 in]
• BalsaMachining.com EB24-P Ring
• Semroc EH-38 Engine Hook E Mass Object
• Semroc Ring
• Semroc Ring
• Maxi_Apogee_II.rkt Freeform Fin Set Freeform Fin Set
