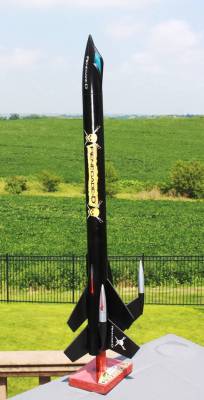

Estes - Renegade-D Rocksim Design File

• Manufacturer: Estes
• Motor Size: 24 mm
• Power: Low-Power
• Recovery: Parachute
• Skill Level: 3
• Style: Futuristic/Exotic

Comments: Estes Renegade D 2410 Skill level 3 Modified for 24x95mm motors. Pod fin tip chords should be fitted to the pod tailcones.

Download Renegade D.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: Estes - Renegade-D {Kit} (2410)
Diameter: 1.6400 inches
Length: 26.6000 inches
Style: Futuristic/Exotic

CG: 15.8352 inches from front
CP: 23.5186 inches from front
Margin: 4.68 Overstable

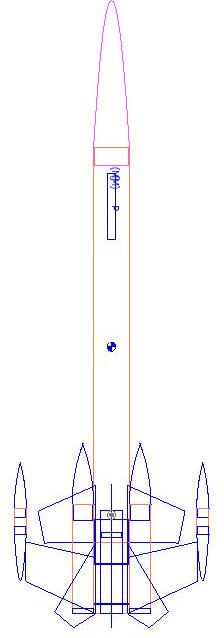

Parts Breakdown

• Estes - Renegade-D Parabolic Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 18.00 in]
• Estes Estes Ring
• Estes Polyethylene LDPE Parachute (18.00 in)
• Custom Mass Object
• Top Flight 6x6 Nomex blanket Mass Object
• Estes - Renegade-D Freeform Fin Freeform Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.27 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 4.72 in]
• Apogee EB-50 Ring
• Qualman 50-60 CR Ring
• Qualman 50-60 CR Ring
• External Pod
• Estes - Renegade-D Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 5.00 in]
• Apogee EB-50 Ring
• External Pod
• Estes - Renegade-D Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 5.00 in]
• Apogee EB-50 Ring
• Estes - Renegade-D Trapezoid Fin Trapezoid Fin Set
• External Pod
• Estes - Renegade-D Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 1.18 in]
• Custom Parabolic Transition
• Estes - Renegade-D Trapezoid Fin Trapezoid Fin Set
• External Pod
• Estes - Renegade-D Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 1.18 in]
• Custom Parabolic Transition
• Estes - Renegade-D Freeform Fin Freeform Fin Set
